Description

11T8/LED/36-835/XD

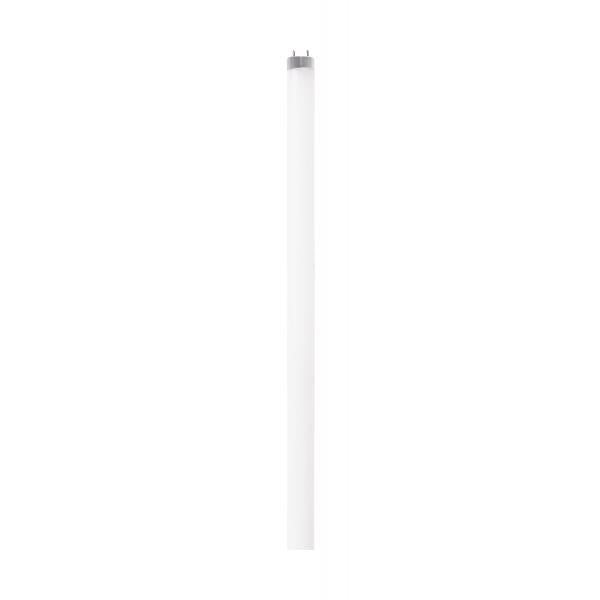

11 Watt T8 LED – 3500K – 120-277 Volt – Medium Bi Pin base – Type C – External Driver required

---

UNSPSC 39101628

---

Warranty 5 Year Limited – LED Type C Bulbs

---

Brand SATCO

---

Additional Info Not for emergency lighting

---

Amps 0.092-0.040A

---

ANSI Base G13

---

Ballast Bypass Direct Replace with external driver

---

Ballasting Requirements Ballast replaced with external driver

---

Beam Spread 220

---

Burning Position Universal

---

CCT Selectable No

---

CA Web Text Lawful for sale

---

CO Terse Lawful for sale

---

HI Terse Lawful for sale

---

NV Terse Lawful for sale

---

VT Terse Lawful for sale

---

Color Temp Neutral White

---

CRI 82

---

Dimmable Yes-Dimmable

---

Dimmable Function 0-10V Dimming Only

---

DLC Approved Yes

---

DLC Classification Standard

---

DLC ID PLE306JZGWQU

---

DLC Primary Use 2-lamp External Driver (UL Type C) Lamps

---

Enclosure Rating Enclosed Rated Lamp

---

ENERGY STAR No

---

FCC Compliant Yes

---

BAA Compliant No

---

Finish Frost

---

Product Type Linear

---

Flr Equiv 25W

---

Avg Rated Hours 50000

---

Image File Name S11935.jpg

---

Incandescent Equiv 50W

---

Lamp Base Medium Bi Pin

---

Lamp Filament LED

---

Lamp Shape T8

---

Lamp Ballast Type A/B/C Type C

---

Lensed Yes

---

Lens Finish Frost

---

Lumens 1600L

---

Material Glass

---

MOD Decimal In. 1

---

MOL Decimal In. 36

---

Nominal Length In. 36

---

NSF Approved ETL Sanitation listed (conforms to NSF)

---

Operating Frequency 50/60Hz

---

Operating Temp -20C (-4F) to +45C (+113F)

---

Order In Multiples Of 25

---

Power Factor 0.9

---

Rated For Enclosed Fixture Yes

---

Rated For Vapor Tight Fixture No

---

RoHS Compliant Yes

---

Safety Listing cULus – Certified;cULus – Classified

---

Location Rating Damp

---

SDS class LED_Lamp

---

Technology LED

---

Temperature (CCT) 3500K

---

THD 20%

---

Three-Way No

---

Tube Guard Use Approved for use with tube guards

---

Volts 120V-277V

---

Watts 11W

---

Weight Lb. 0.34

---

Working Voltage 120-277VAC 39VDC 290mA

---
